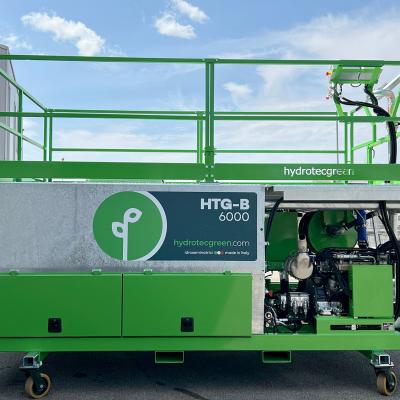

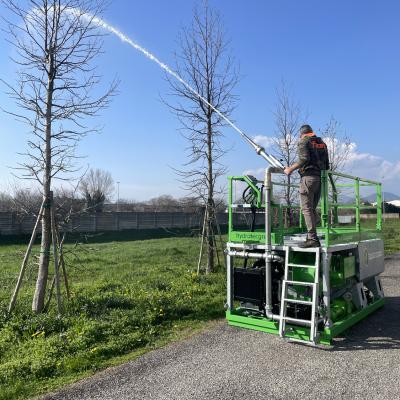

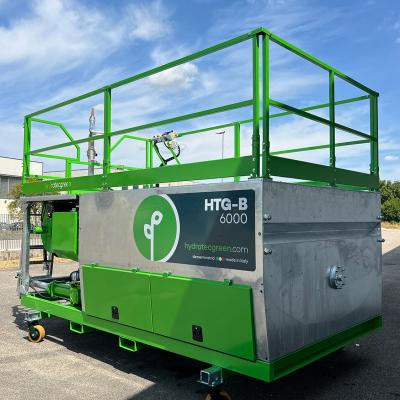

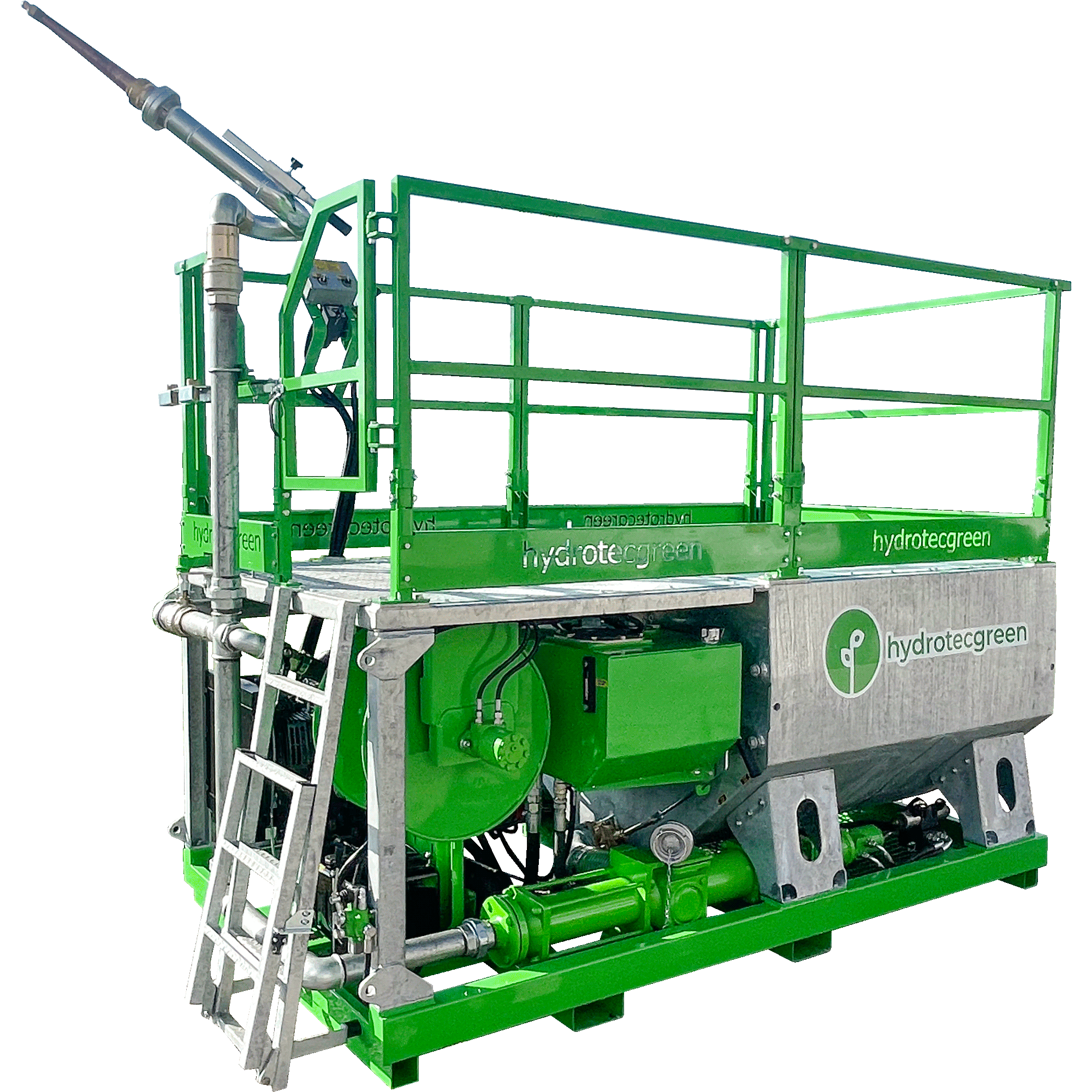

The HTG-B Series combines advanced Italian technology with extensive manufacturing experience.
With tank capacities of 2,000, 3,000, and 6,000 liters, these flagship models are designed to meet the needs of experienced professionals, ensuring outstanding performance with virtually no maintenance costs.
 |
 |
 |
|
|---|---|---|---|
| Dimensions [mm] | 2850 x 1700 x 1600 | 3320 x 1950 x 2300 | 4300 x 2300 x 2680 |
| Weight [kg] | 2.000 | 2.200 | 2.900 |
| Tank | 2,150 L hot-dip galvanized steel | 3,100 L hot-dip galvanized steel | 6,100 L hot-dip galvanized steel |
| Engine | Kohler (Extra EU) KDI 1903M/26- 40,23 hp Stage 3A |
|
|
| Pump |
|
|
|
| Mixing System |
|
|
|
| Hydraulic system |
|
|
|
| Piping | 2” 1/2 | 3” | 3” |

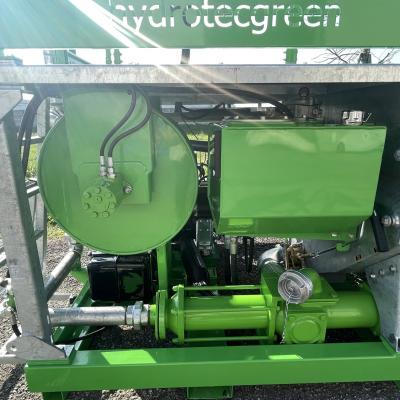

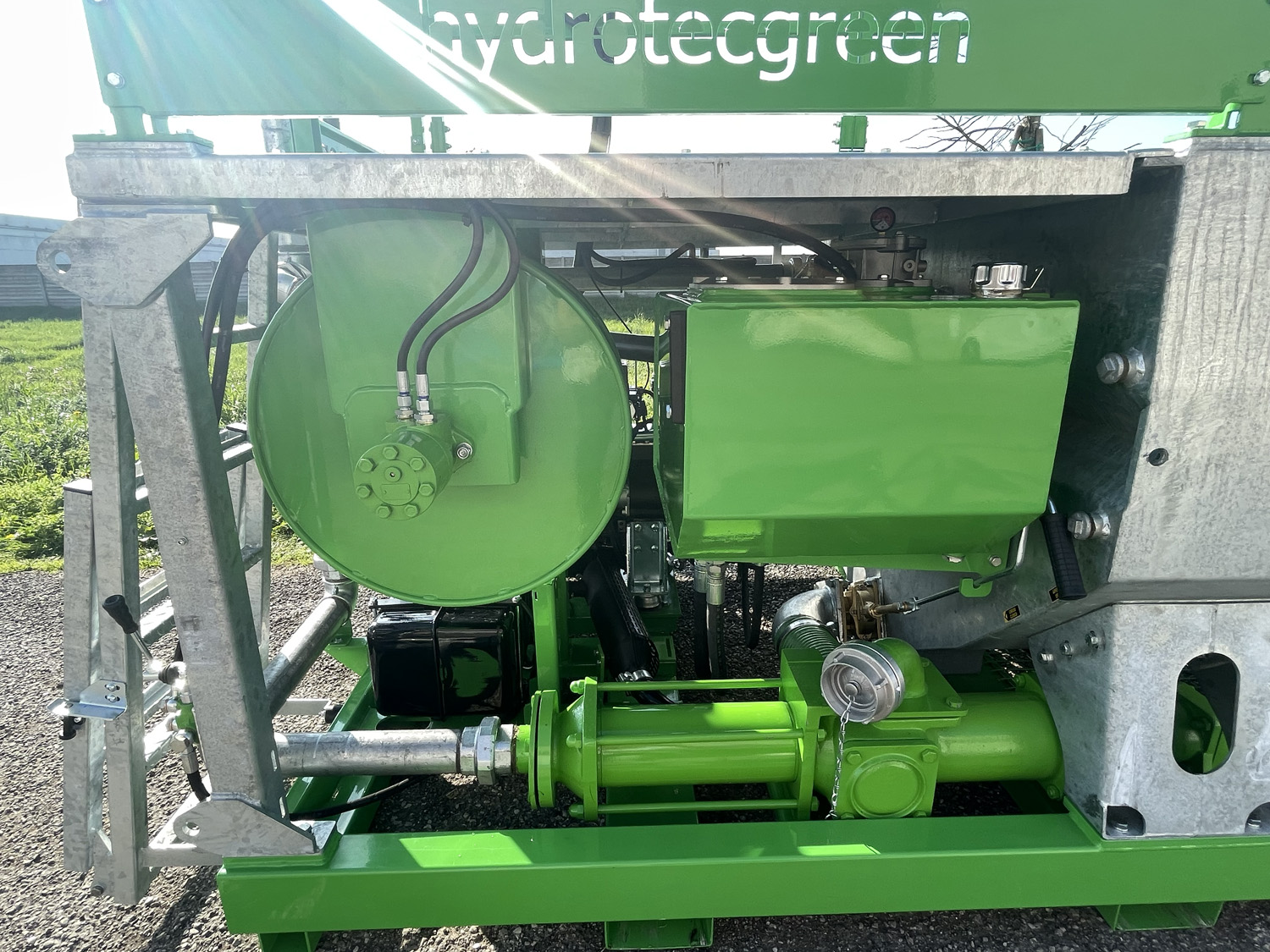

The Hydrotecgreen volumetric pump, equipped with chrome-plated steel eccentric screw and a high-strength plastic stator, is designed to handle dense mixtures.
It allows the use of long hoses and direct suction from the tank, thanks to the standard supply kit.
Engineered to homogenize large volumes of material, if features a hydraulic motor that ensures constant power, precise speed adjustment, and paddle rotation. The result is accurate, uniform, and continuous mixing, even in demanding applications.
All frames undergo sandblasting and powder coating, while tanks are hot-dip galvanized, providing high resistance to corrosion.
These treatments offer effective protection against weathering and ensure long-lasting performance.
The suction kit enables easy, independent tank filling without the need for external devices.
Where available, rapid connections to fire hydrants are possible thanks to quick-release fittings.
Two hydraulic motors, connected to tandem pumps, separately control the pump and mixer.
This independent management guarantees consistent and reliable performance throughout the entire work cycle, even under heavy-duty conditions.
Keeps oil temperature stable, preventing overheating that could lead to interruptions.
This ensures continuous operation and helps preserve oil quality over time, reducing wear and maintenance.
The electric start, pump and mixer activation, and speed adjustment directly from the control panel make the system easy to operate and highly efficient in every work phase.
Fitted with storz couplings, available in different lengths
With 40 meters of hose
